Build Smarter AI Apps: Spring Boot MCP Server Integration Guide

Ready to power up your AI applications with real-time data access? The Spring Boot MCP Server lets you seamlessly connect AI models like Claude or Cursor to your application's data using the Model Context Protocol (MCP). Imagine your AI fetching game listings or searching for data with simple commands, all backed by a lightweight, extensible Spring Boot service.

In this hands-on guide, you'll learn how to set up a Spring Boot MCP Server, expose your data as AI-usable tools, and test the integration with leading AI clients. Whether you're building internal developer tools or customer-facing apps, this approach streamlines AI-data connectivity—no heavy infrastructure required.

💡 Looking for an API testing platform that generates beautiful API documentation, boosts team productivity, and replaces Postman at a better price?
Apidog delivers all that in one place.

button

What Is the Spring Boot MCP Server?

The Spring Boot MCP Server is a modular Spring Boot application that exposes your business data as AI-accessible tools by leveraging the Spring AI MCP framework. It acts as a bridge, letting AI models securely interact with your data—such as a list of games—via standardized MCP tool endpoints.

Key Features:

Get all games: Returns a full list of available games.
Search games by title: Finds a game matching a specific title.

Built on Spring Boot, this solution is easy for developers to set up, extend, and maintain. Perfect for teams looking to offer dynamic data access to AI models, or for those wanting to build and test their own MCP servers.

Step-by-Step Guide: Using the Spring Boot MCP Server

Prerequisites

Before you start, ensure you have:

Java 24: Download from oracle.com
Maven 3.8+: Get it from maven.apache.org
IntelliJ IDEA (or your preferred IDE): jetbrains.com
Claude Desktop or Cursor for AI client testing: anthropic.com & cursor.com
Basic Spring Boot knowledge

1. Create a New Spring Boot Project

Visit Spring Initializr
Configure:
- Project: Maven
- Language: Java
- Spring Boot: 3.5.4 (latest stable)
- Packaging: Jar
- Java Version: 24
- Add Dependency: Spring AI MCP Server

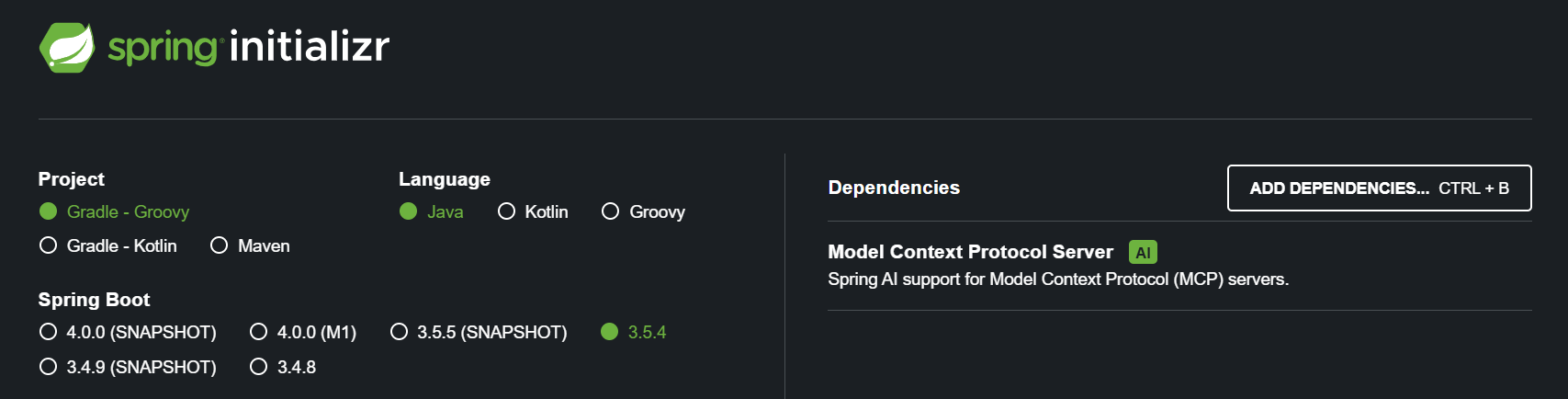

spring initializr

Click Generate to download the project.
Unzip and open it in IntelliJ IDEA (or your IDE).

2. Project Structure Overview

Your project will contain:

Game.java — Defines the data model (game title & URL)
GameService.java — Implements MCP tools using @Tool
TestMcpServerApplication.java — Main app; registers tools
application.properties — Configures the MCP server

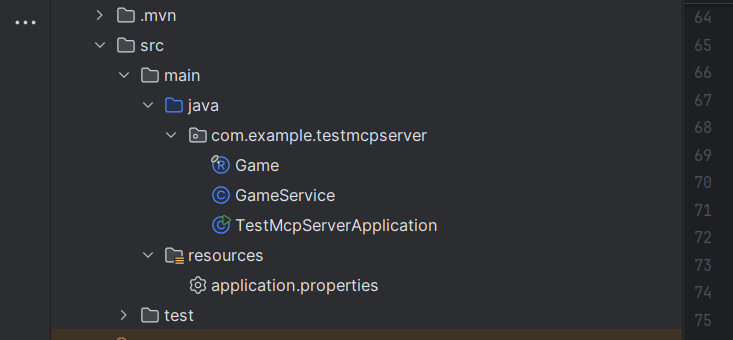

project structure

Sample application.properties:

spring.application.name=test-mcp-server
spring.main.web-application-type=none
spring.ai.mcp.server.name=game-demo-mcp
spring.ai.mcp.server.version=0.0.1
spring.main.banner-mode=off
logging.pattern.console=

This configures a non-web, STDIO-based MCP server—ideal for secure AI tool communication.

3. Define Your Data Model

In Game.java, create a simple record for the game data:

package com.example.testmcpserver;

public record Game(String title, String url) {}

This immutable object makes it easy for AI models to process your data.

4. Implement MCP Tools

Define your business logic in GameService.java using the @Tool annotation:

package com.example.testmcpserver;

import jakarta.annotation.PostConstruct;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.tool.annotation.Tool;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.List;

@Service
public class GameService {
    private static final Logger log = LoggerFactory.getLogger(GameService.class);
    private List<Game> games = new ArrayList<>();

    @Tool(name = "get_games", description = "Get a list of games from the collection")
    public List<Game> getGames() {
        return games;
    }

    @Tool(name = "get_game", description = "Get a single game from the collection by title")
    public Game getGame(String title) {
        return games.stream().filter(game -> game.title().equals(title)).findFirst().orElse(null);
    }

    @PostConstruct
    public void init() {
        games.addAll(List.of(
            new Game("GTA 6", "https://www.rockstargames.com/VI"),
            new Game("FC 26","https://www.ea.com/en/games/ea-sports-fc/fc-26"),
            new Game("Call of Duty: Black Ops 7","https://www.callofduty.com/blackops7")
        ));
    }
}

5. Register Tools with the MCP Framework

In TestMcpServerApplication.java, wire up your tools:

package com.example.testmcpserver;

import org.springframework.ai.support.ToolCallbacks;
import org.springframework.ai.tool.ToolCallback;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;

import java.util.List;

@SpringBootApplication
public class TestMcpServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(TestMcpServerApplication.class, args);
    }

    @Bean
    public List<ToolCallback> danTools(GameService gameService) {
        return List.of(ToolCallbacks.from(gameService));
    }
}

ToolCallbacks.from() scans for @Tool methods and registers them.

6. Run Your Spring Boot MCP Server

Open your terminal in IntelliJ IDEA.
Run:
```
mvn spring-boot:run
```
The server starts as an STDIO-based MCP server (no web UI).

Verify: You should see two registered tools: get_games and get_game.

7. Connect with Claude Desktop or Cursor

For Claude Desktop

Build the JAR:
```
mvn clean package
```
Find the JAR at target/test-mcp-server-0.0.1-SNAPSHOT.jar.

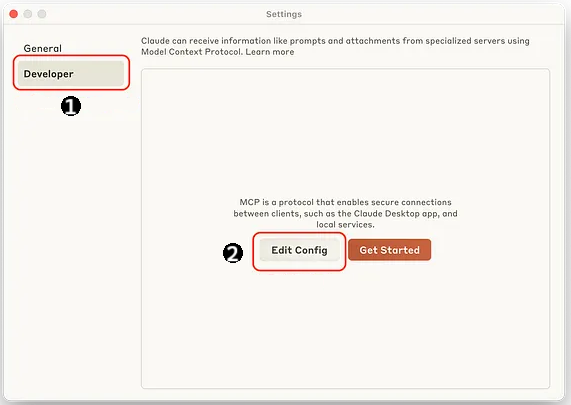

Configure claude_desktop_config.json:

macOS: ~/Library/Application Support/Claude
Windows: %APPDATA%\Claude

Add:

{
  "mcpServers": {
    "game-demo-mcp": {
      "command": "java",
      "args": [
        "-jar",
        "path/to/test-mcp-server-0.0.1-SNAPSHOT.jar"
      ]
    }
  }
}

Replace path/to/ with the actual file path.

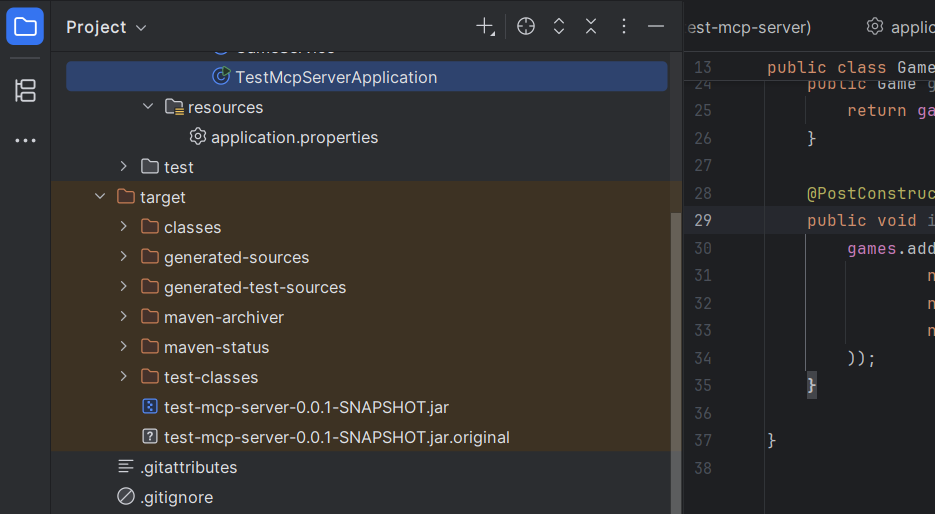

target folder with jar file

Restart Claude Desktop to load the new config.

For Cursor

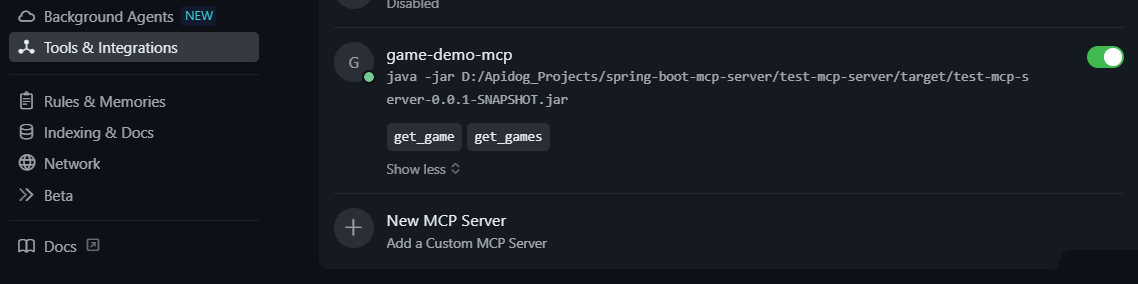

Go to Settings → Cursor Settings → Tools and Integrations
Click New MCP server and follow the prompts.

edit cursor mcp configuration

8. Test the MCP Server Integration

Try these test commands via Claude Desktop or Cursor:

List all games:

Using the MCP server, get all available games.

Expected Output:

Available games:
- Title: GTA 6, URL: https://www.rockstargames.com/VI
- Title: FC 26, URL: https://www.ea.com/en/games/ea-sports-fc/fc-26
- Title: Call of Duty: Black Ops 7, URL: https://www.callofduty.com/blackops7

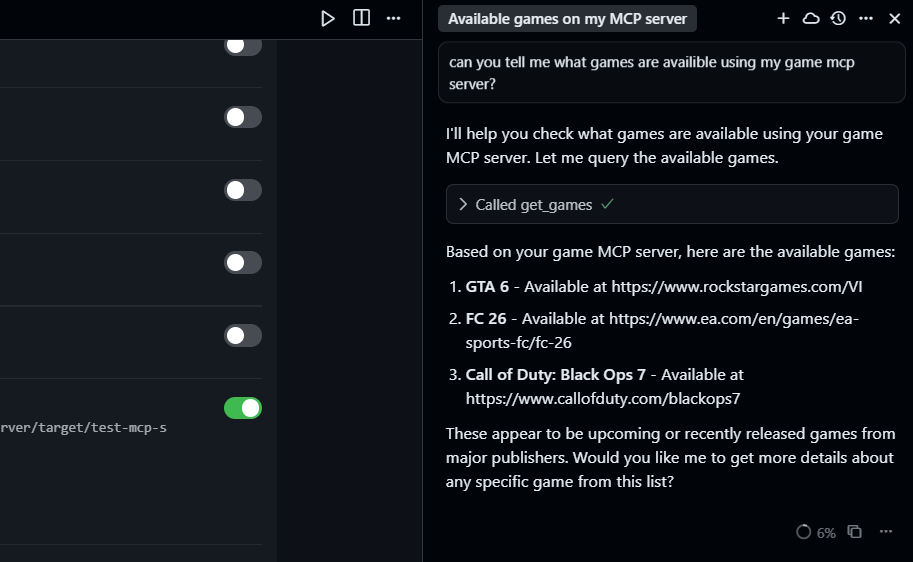

testing the mcp server

Find a specific game:

Using the MCP server, get the game with title "FC 26".

Expected Output:

Game: FC 26, URL: https://www.ea.com/en/games/ea-sports-fc/fc-26

9. Extend and Customize the MCP Server

To further adapt the server to your needs:

Add More Data: Expand the games list in GameService.

Create New Tools: For example, search by keyword:

@Tool(name = "search_games", description = "Search games containing a keyword")
public List<Game> searchGames(String keyword) {
    return games.stream()
        .filter(game -> game.title().toLowerCase().contains(keyword.toLowerCase()))
        .collect(Collectors.toList());
}

Integrate a Database: Replace the in-memory list with a persistent database.
Enhance Search: Add category filters or fuzzy search as needed.

Troubleshooting

Server Won't Start? Check your Java and Maven versions, and ensure application.properties is set correctly.
Claude/Cursor Can't Connect? Verify your JAR path and configuration files, then restart the client.
Tools Missing? Ensure @Tool annotations and ToolCallbacks registration are correct.
No Output? Review the terminal logs for errors.

Why Choose the Spring Boot MCP Server for AI Integration?

The Spring Boot MCP Server is purpose-built for developers who want robust, real-time AI integration without heavy infrastructure. Its STDIO-based transport ensures secure communication, and Spring Boot’s flexibility means you can quickly adapt it to your backend or API ecosystem.

This guide demonstrated a full workflow: setup, tool exposure, and real-world testing with Claude Desktop and Cursor. By leveraging MCP, you unlock AI-driven data access in your applications—ideal for API teams, backend engineers, and innovation-focused developers.
